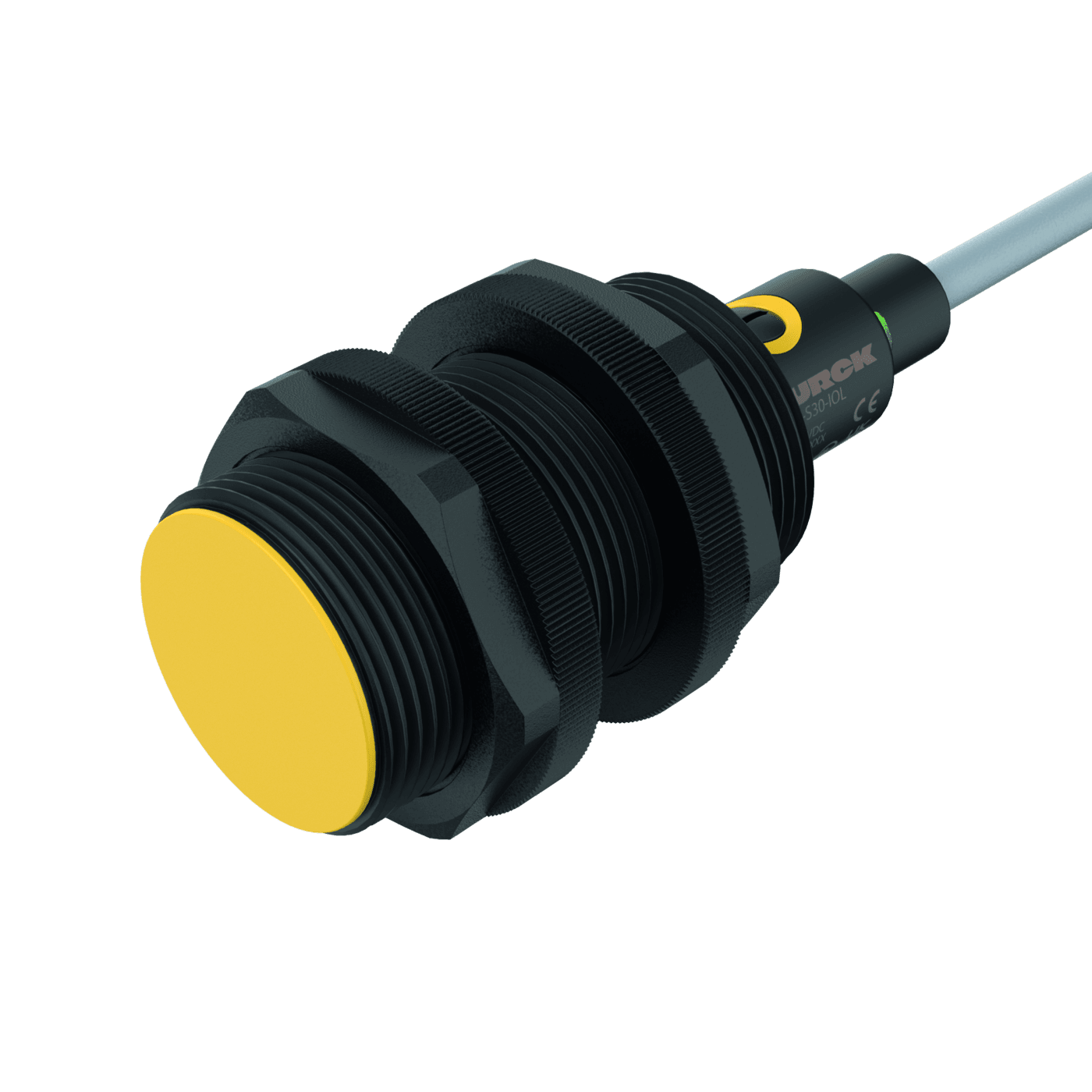

Capacitive sensor

UC25-S30-IOL

Order ID no. 100050170

Ambient temperature max.: 60
Ambient temperature min.: -40
Cable length: 2
Communication protocol: IO-Link
Connector type: Open end
Construction size: ⌀ 30 mm
Design: Threaded barrel
Electrical connection: Stranded wires
Function: Continuous level measurement, For dry granules, For highly viscous media, Level detection
Housing material: Plastic
Housing quality: PA12-GF30, PEI
Measuring principle: Capacitive
Media temperature max.: 85
Media temperature min.: -40
Medium: Bulk goods, liquids
Mounting conditions: Flush/Non-flush
Operating voltage: DC
Output function: PNP/NPN
Protection class: IP67
Quality active face: PA12-GF30
Switching element function: NO/NC programmable
