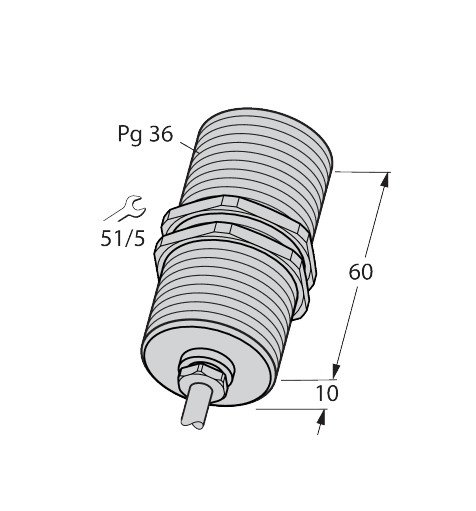

Inductive Sensor

Bi20-G47-Y1

Order ID no. 10068

Ambient temperature max.: 70
Ambient temperature min.: -25
Approvals: ATEX II 1 D, ATEX II 2 D, ATEX II 2 G, ATEX II 3 D, ATEX II 3 G, PL c, SIL 2
Cable color: Blue
Cable length: 2
Construction size: ⌀ 47 mm
Design: Threaded barrel
Electrical connection: Cable
Housing material: Metal
Housing quality: CuZn
Housing surface: Chrome-plated
Mounting conditions: Flush
Operating voltage: DC
Output function: NAMUR
Protection class: IP67
Quality active face: PA12-GF30
Rated switching distance: 20
Switching frequency (kHz): 0.2
