Inductive Sensor For the food industry

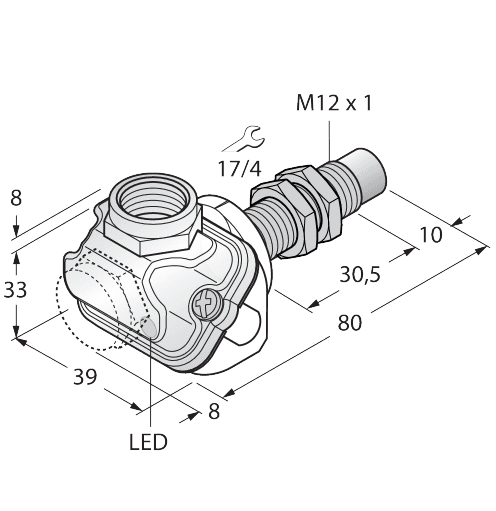

NI10U-EM12WDTC-AP6X

Order ID no. 1634761

Ambient temperature max.: 100
Ambient temperature min.: -40
Connector type: Removable cage clamp terminals
Construction size: ⌀ 12 mm
Design: Threaded barrel
Electrical connection: Terminal chamber
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Mounting conditions: Non-flush
Operating voltage: DC
Output function: PNP
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance: 10
Special features: Factor 1, Pressure resistant, Resistant to magnetic fields, Sn +, uprox+, Wash down
Switching element function: NO contact
Switching frequency (kHz): 1
